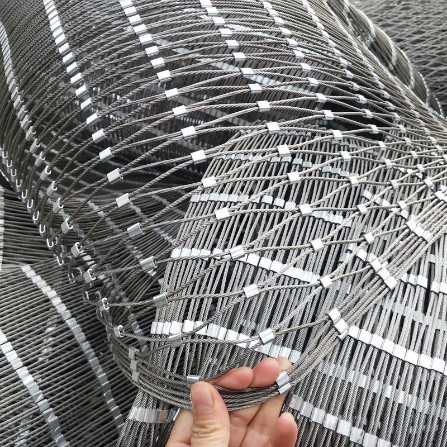

Ferrule Cable Mesh

Ferrule Cable Mesh is a high-tensile, lightweight mesh system made from interwoven stainless steel wire ropes, securely connected with ferrules. It combines superior flexibility with high strength, making it ideal for modern architectural applications where transparency, durability, and safety are key.

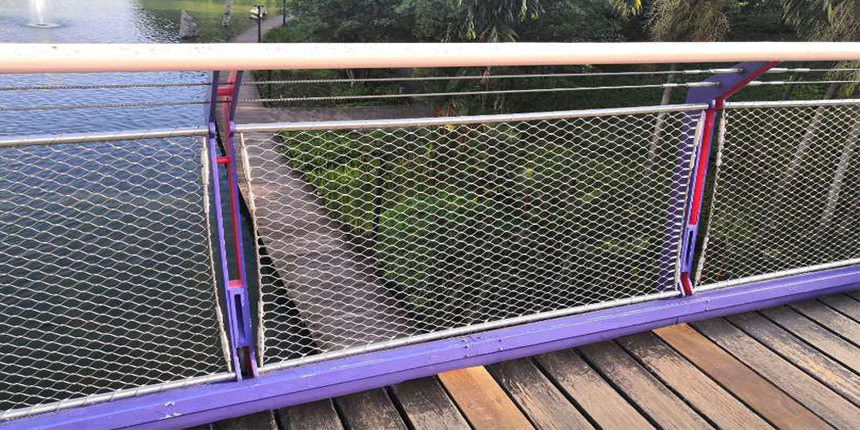

Its sleek and minimal appearance complements both interior and exterior designs, while its robust construction withstands harsh environmental conditions — making it perfect for everything from zoo enclosures to green facades and safety barriers.

Key Features & Benefits

High Strength & Safety
Engineered from stainless steel wire ropes, offering excellent load-bearing capacity and long-term structural integrity.
Flexible & Lightweight
Easily conforms to complex shapes and curved surfaces — ideal for creative architectural designs.
Corrosion-Resistant
Made from high-grade stainless steel (AISI 304 or 316), perfect for outdoor, marine, or humid environments.
Transparent & Aesthetic
Open, airy design allows maximum light and visibility without compromising security.
Low Maintenance
Long-lasting, weatherproof, and requires minimal upkeep even in harsh environments.

Material Options

Stainless Steel AISI 304 – Excellent corrosion resistance for most environments
Stainless Steel AISI 316 – Enhanced resistance for coastal/marine or highly corrosive areas

Technical Specifications

Cable Diameter: 1.2 mm to 4.0 mm
Mesh Aperture Sizes: 20 mm to 120 mm (custom available)

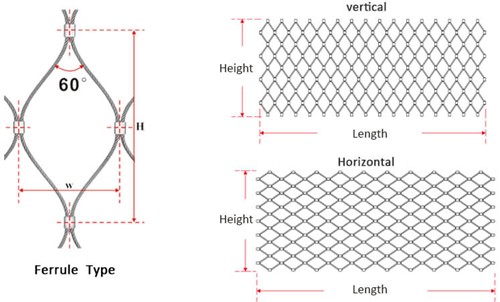

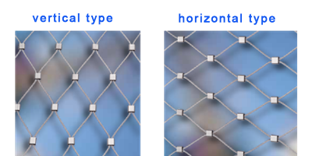

Mesh Orientation: Diamond or square
Ferrule Material: Stainless steel or aluminium
Installation Format: Panels cut to size and ready to install

Customization Options

Mesh aperture and cable diameter
Panel shape and size (flat or curved)
Orientation (vertical, horizontal, or diagonal diamond)
Custom framing or mounting hardware available

Industries We Serve

Architecture & Design
Construction & Infrastructure
Zoos & Wildlife Parks
Landscape & Urban Design
Sports & Recreation Facilities
Safety & Security
