WhatsApp:BRC / ANTI CLIMB FENCE
BRC FENCE/ WELDED FENCE
BRC fencing is a type of welded wire mesh panel fence known for its rigidity, clean appearance, and safety. It features a rolled top and bottom edge (reinforced bends), making it safe for public areas and structurally stronger than standard mesh panels.
Often used in urban infrastructure, public buildings, and industrial sites, BRC fencing is a preferred choice where aesthetics, safety, and durability are required.
Key Features & Benefits
- Reinforced rolled edges for added strength and safety
- Flat panel design for easy installation
- Long-lasting and low maintenance
- Suitable for both decorative and security fencing
Common Applications
- Residential compounds and apartment complexes
- Schools, parks, and public buildings
- Commercial properties and warehouses
- Government and utility infrastructure
- Industrial zones and logistics centers
Material & Finish
- Galvanized Steel: For long-term outdoor use
- Powder-Coated Options: Available in custom RAL colors
- Hot-Dip Galvanized: For enhanced corrosion resistance
Specifications
- Panel Height: 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.4 m
- Panel Length: Typically 2.4 m
- Wire Diameter: 4 mm to 6 mm
- Mesh Opening: Commonly 50 mm x 150 mm, 25 mm x 75 mm or as specified
- Post Types: Square, round, or C-channel with pre-drilled holes
BRC Fence (FA Series) Specifications
| Height (mm) | Length (mm) | Wire Diameter (mm) | Mesh Opening (mm) |
|---|---|---|---|
| 900 | 2400 | 5 | 50(W) X 150(H) |
| 1200 | 2400 | ||
| 1500 | 2400 | ||
| 1800 | 2400 | ||
| 2100 | 2400 | ||
| 2400 | 2400 |
BRC Fence (FB Series) Specifications
| Height (mm) | Length (mm) | Wire Diameter (mm) | Mesh Opening (mm) |
|---|---|---|---|
| 900 | 2400 | 4 | 25(W) X 75(H) |
| 1200 | 2400 | ||
| 1500 | 2400 | ||
| 1800 | 2400 | ||
| 2100 | 2400 | ||
| 2400 | 2400 |
ANTI CLIMB FENCE
Anti-Climb Fence is a premium high-security welded mesh system engineered to resist climbing, cutting, and forced intrusion. With narrow mesh openings and heavy-gauge wire, this fencing solution is ideal for facilities where maximum perimeter protection is non-negotiable.
Its flat-panel, tight-grid design provides both visibility and security, making it a preferred choice for military zones, infrastructure, and high-risk commercial or industrial sites.
Key Features & Benefits
- Small openings prevent climbing and cutting
- Strong, durable welded wire
- Rust-resistant galvanized or powder coat finish
- Tamper-proof secure fixings
Common Applications
- Prisons and correctional facilities
- Airports and transportation hubs
- Power plants and utilities
- Military and government sites
- Industrial and commercial perimeters
Material & Finish
- Galvanized Steel for corrosion resistance
- Hot-dip galvanized for enhanced durability
- Powder-coated in custom RAL colors for aesthetics and protection
Specifications
- Panel Height: 0.9 m to 3.6 m
- Panel Width: Typically 2.4 m
- Wire Diameter: 4 mm – 6 mm
- Mesh Opening: Approximately 75 mm × 12.7 mm (3″ × 0.5″)
- Post Types: Square or RHS posts with tamper-proof fixings
Anti-Climb Fence Specifications
| Height (mm) | Length (mm) | Wire Diameter (mm) | Mesh Opening (mm) |
|---|---|---|---|
| 900 | 2400 | 4 | 12.5 (W) x 75 (H) |
| 1200 | 2400 | ||
| 1500 | 2400 | ||
| 1800 | 2400 | ||
| 2100 | 2400 | ||
| 2400 | 2400 |
Product Views

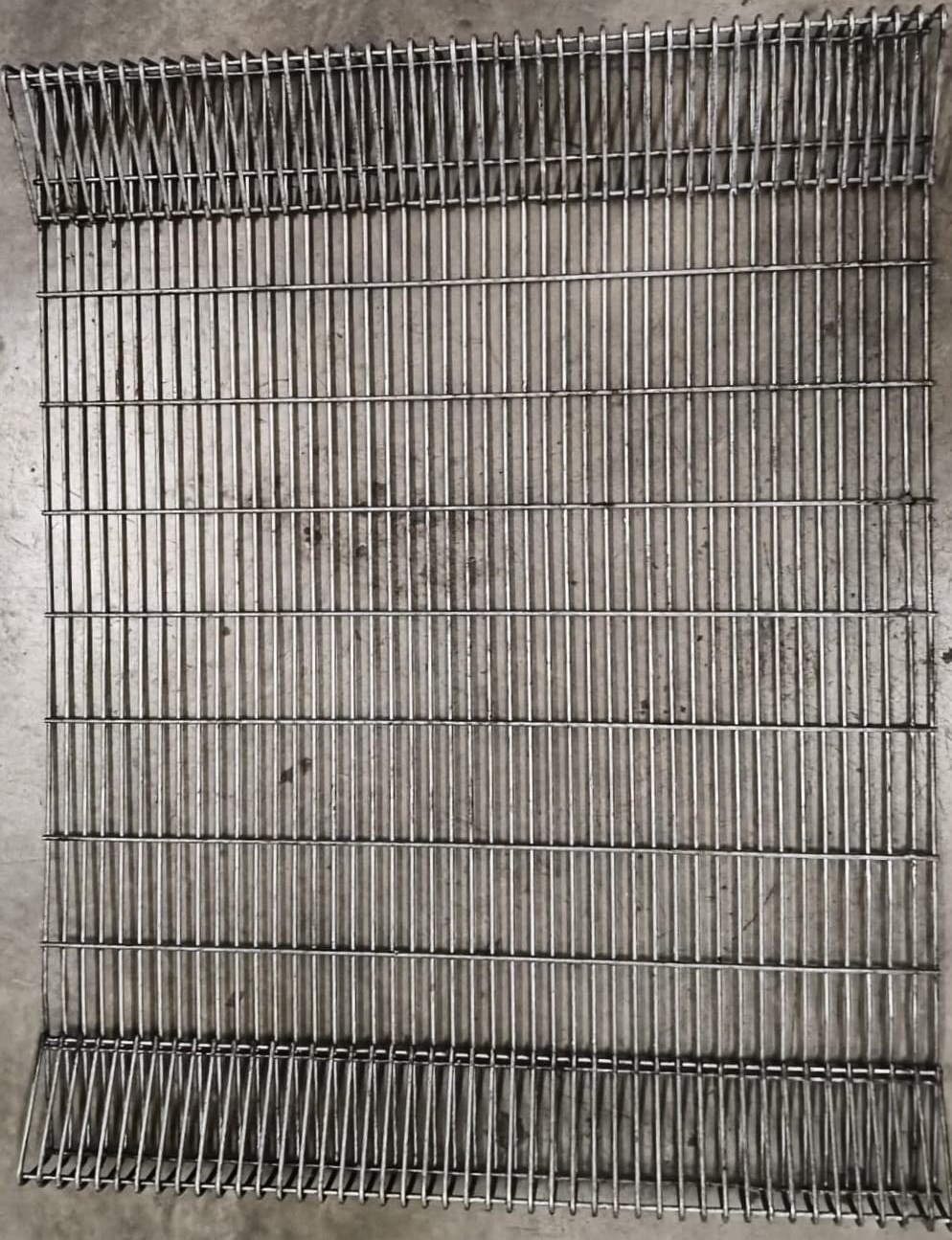

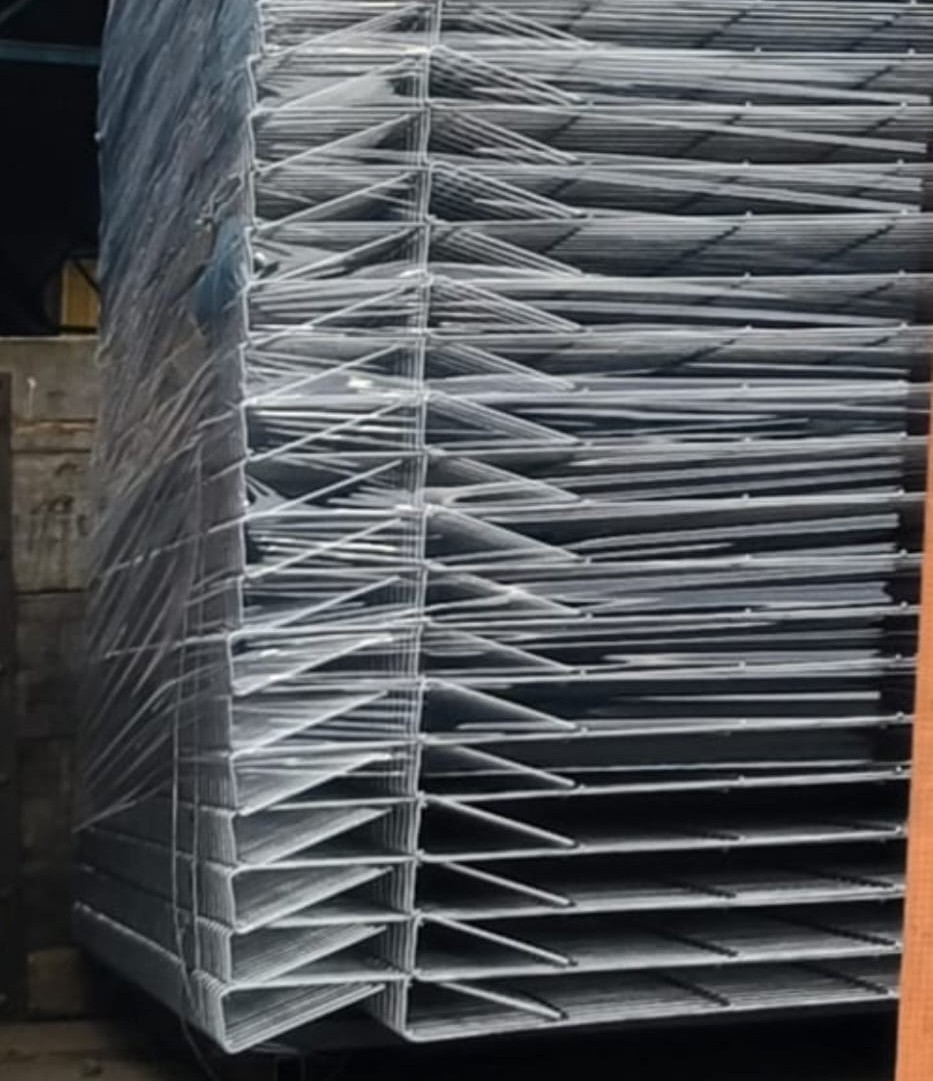

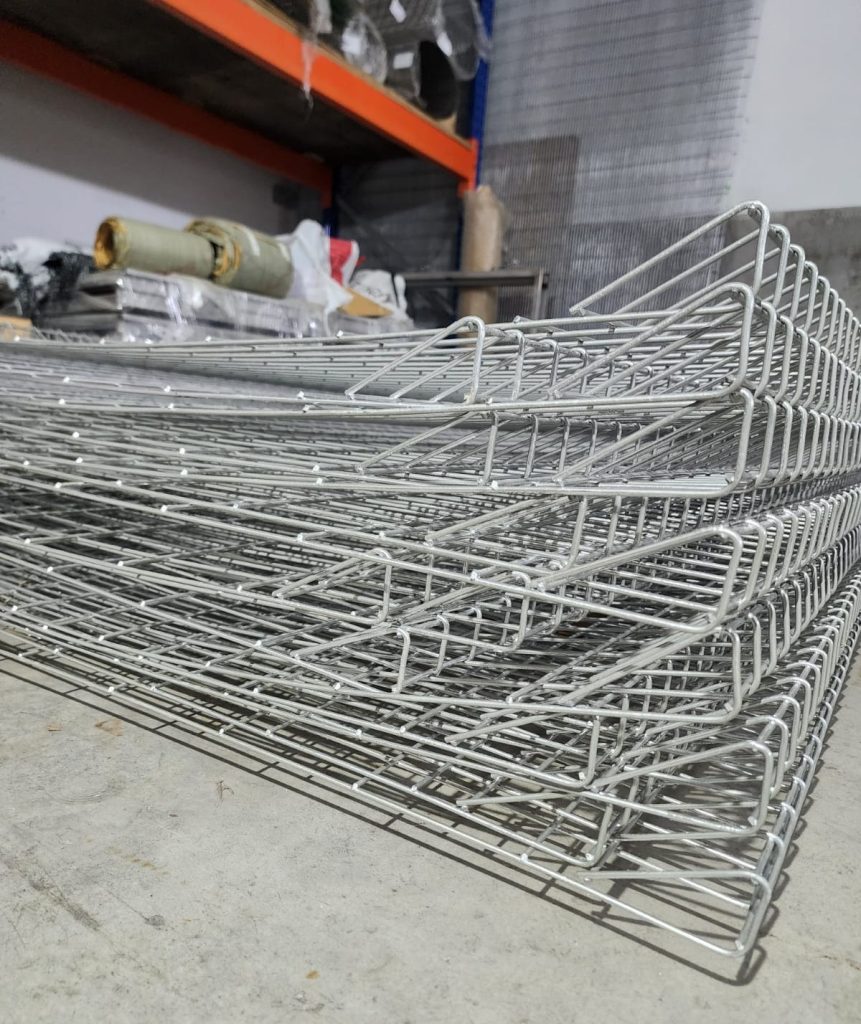

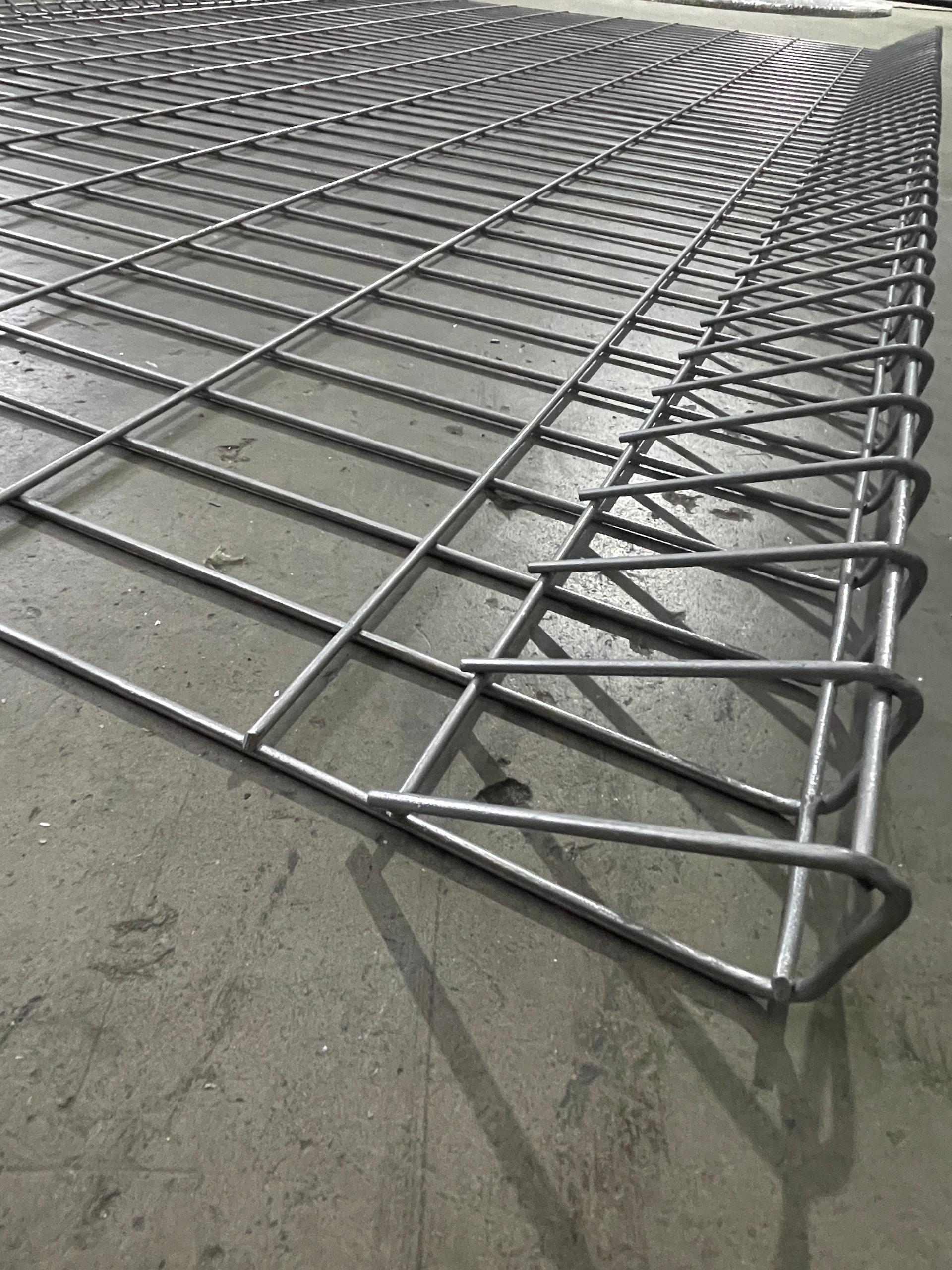

GALVANISED
BRC FENCE
(ROLLED TOP)
50MMx150MM
5MM WIRE
GALVANISED
BRC FENCE
(ROLLED TOP)
50MMx150MM
5MM WIRE

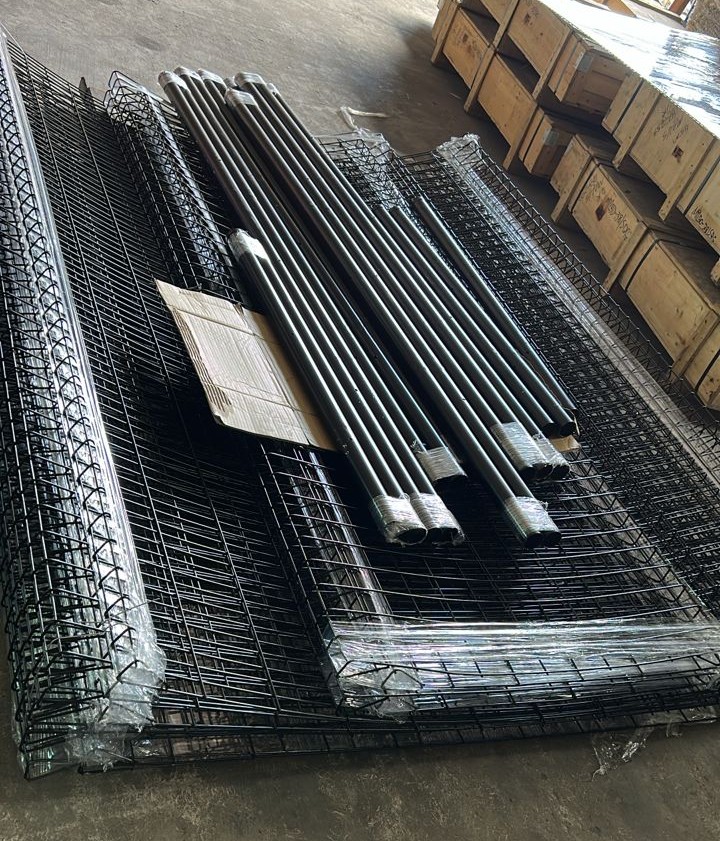

(PVC COATED)
GALVANISED
BRC FENCE
(ROLLED TOP)
60MMx150MM
5MM WIRE
